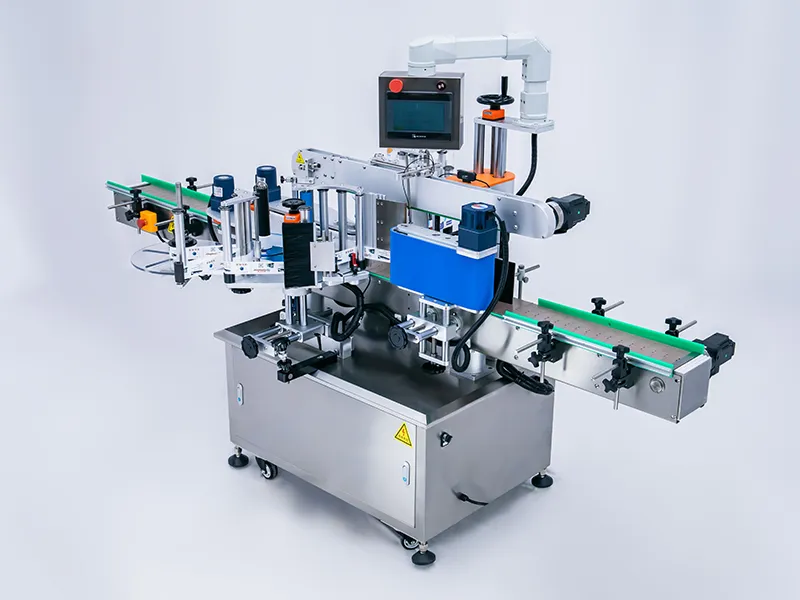

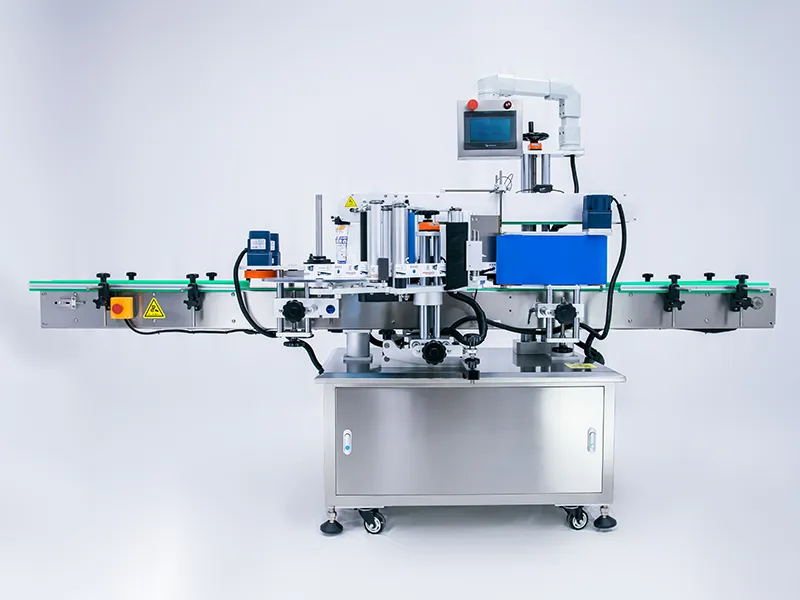

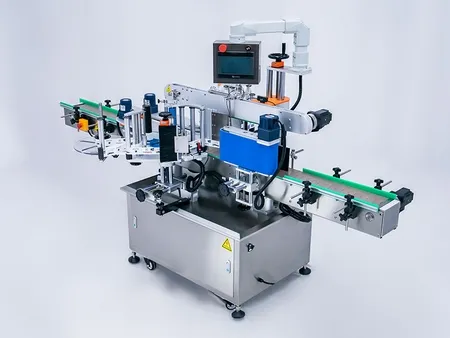

Automatic two-sided labeling machine for applying self-adhesive labels on both sides of package

Designed to make your labeling process faster and more efficient, our front and back labeling machine features a dual-sided separation design; it can label both sides of your products simultaneously, reaching speeds of up to 200 bottles per minute. It’s fully adjustable to meet your specific requirements for flat surface labeling. Plus, if you ever need single-side labeling, this labeler can be easily modified, giving you the flexibility to handle a wide range of products. Whether you’re in the food, pharmaceutical, or another industry, this front and back labeling machine is ready to adapt to your needs. Let’s talk about how it can simplify your production!

Request a Quote

Labeling Speed
10 to 200 Products Per Minute
Machine Dimensions (L×W×H)
2800×1500×1600mm

Specifications

Machine Dimensions (L×W×H) 2800×1500×1600mm
Conveyor Belt Height From Ground 880mm
Conveyor Chain Width 101.6mm
Labeling Speed 10-200pc/min (depending on bottle diameter and label length)
Applicable Product Height 30-350mm
Applicable Product Thickness 20-120mm
Label Height Range 5-215mm
Label Length Range 20-300mm
Labeling Accuracy ±1mm (excluding package and label errors)
Inner Diameter of Label Roll 40mm/76mm
Outer Diameter of Label Roll ＜ 360mm
Power Supply Single phase 220V 50/60HZ 3.5kW
Machine Weight 400kg

Applications

This front and back labeling machine is perfect for production lines requiring large-scale labeling. It’s designed to apply labels on side flat surfaces or large curved side surfaces, making it ideal for industries such as food, pharmaceuticals, cosmetics, personal care, electronics, hardware, and plastics.

Here are some examples:

Food Industry: Side labeling for bagged products or irregularly shaped boxed food.
Pharmaceuticals: Attaching side instruction labels on certain bagged medical products.
Cosmetics: Labeling on outer packaging boxes for cosmetic products.

Features

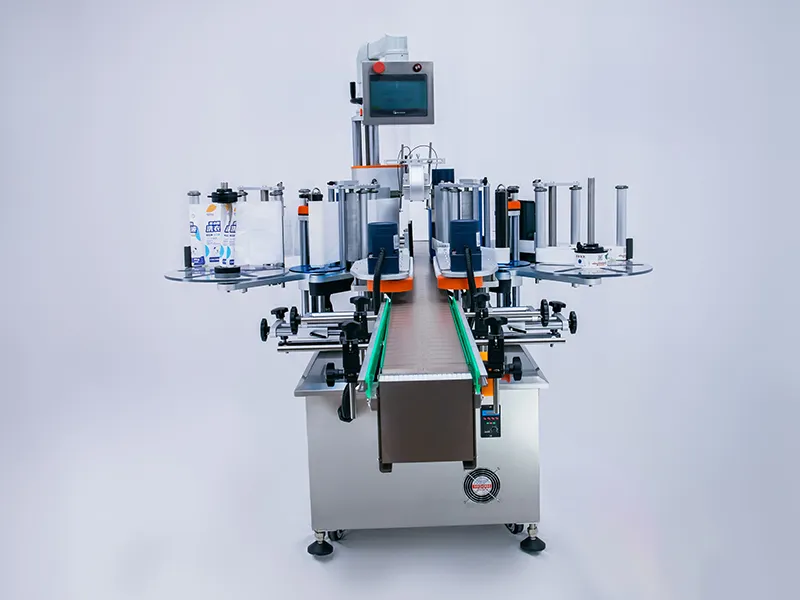

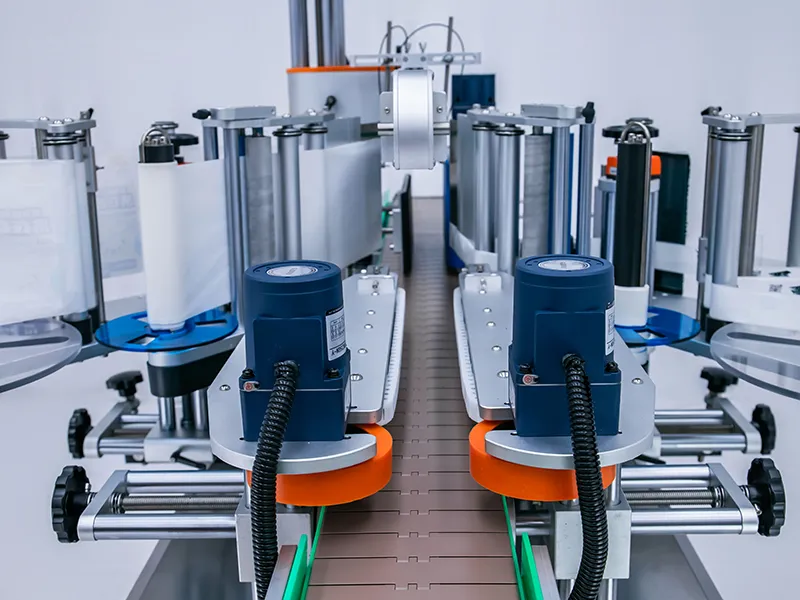

Left-Right Separation Design: Flexible installation, easily integrates into both new and existing production lines, even in narrow spaces.
Smart Control System: Equipped with automatic photoelectric tracking, ensuring no product, no labeling, automatic label correction, and label detection to prevent missed labels and reduce waste.
Versatile Labeling Capability: Suitable for single-side or double-side labeling of various products, including round, flat, square, and irregularly shaped bottles. Comes with an automatic bottle separation mechanism to ensure stable guiding, conveying, and labeling.

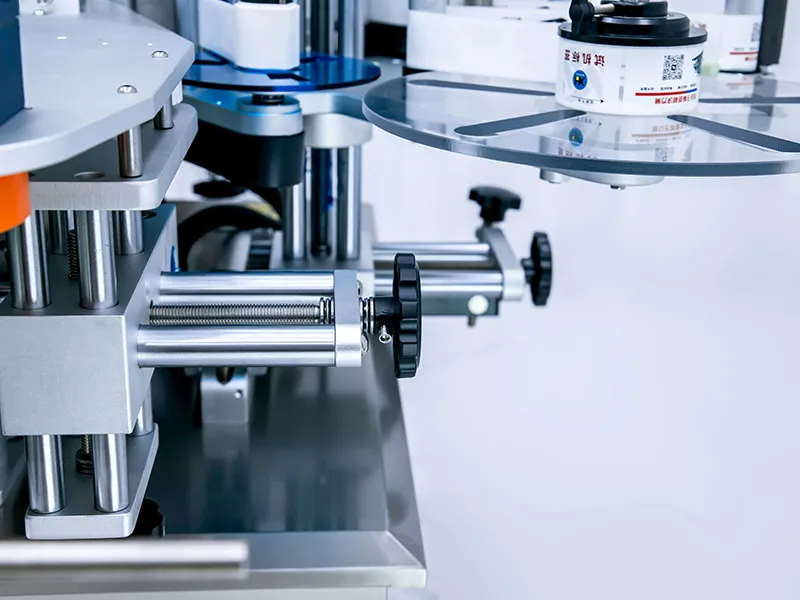

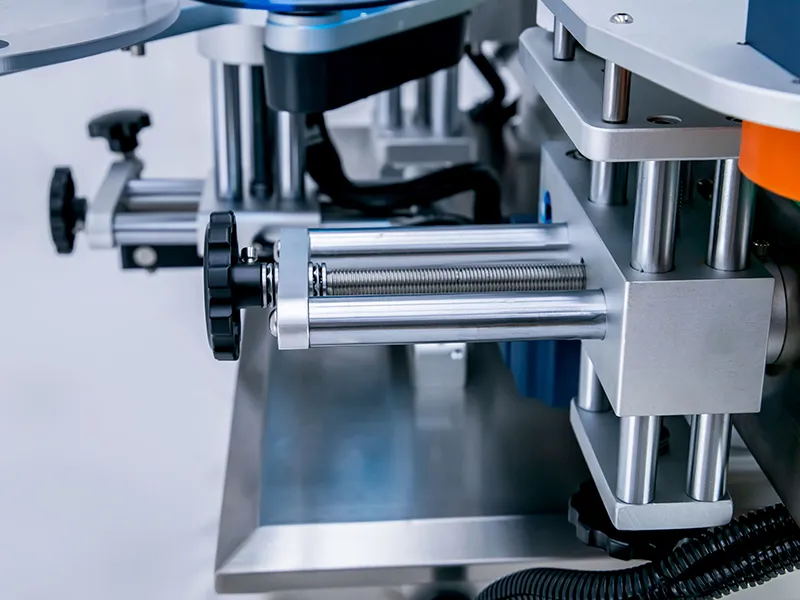

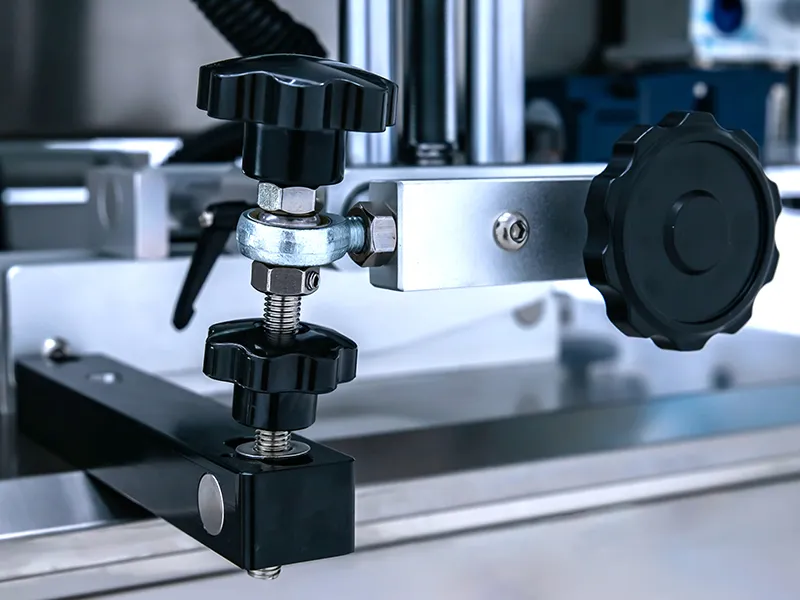

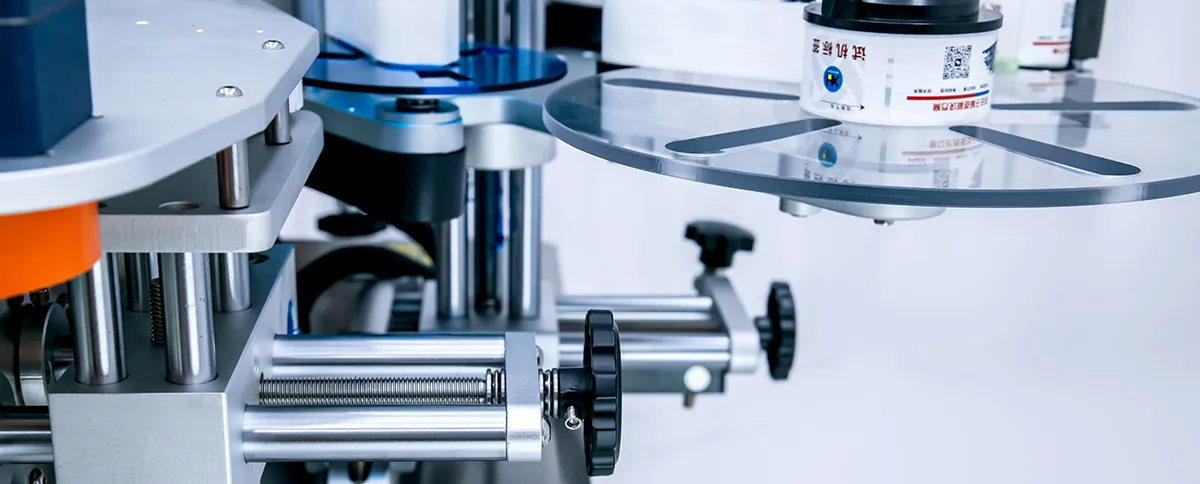

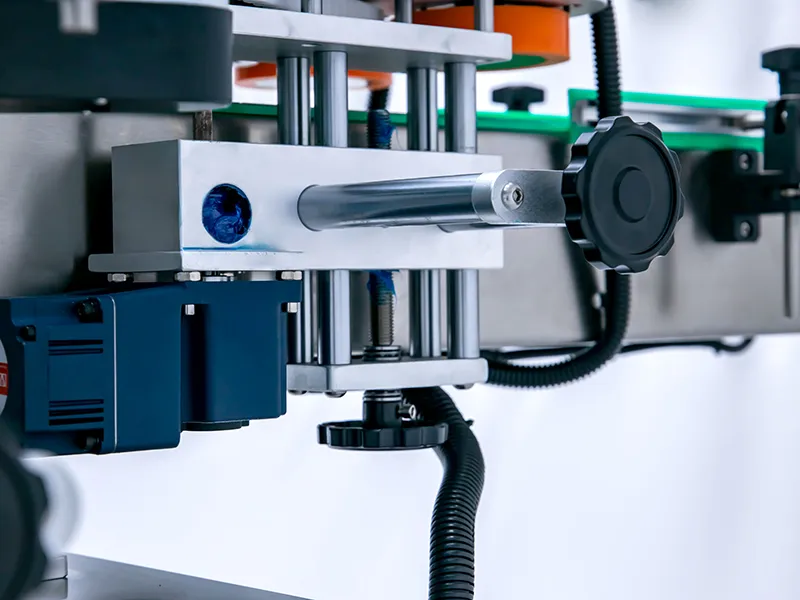

Innovative Labeling Head: Adjustable in eight dimensions, allowing quick adjustments for any product in just minutes.

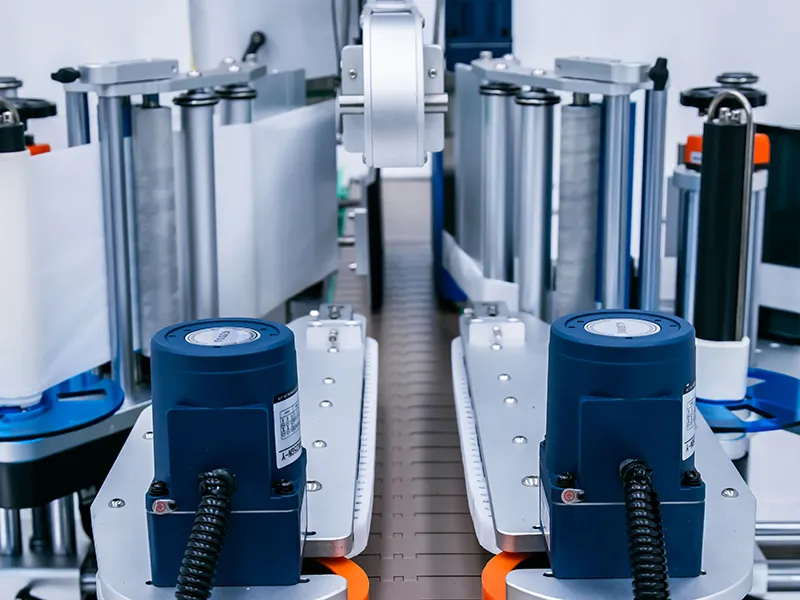

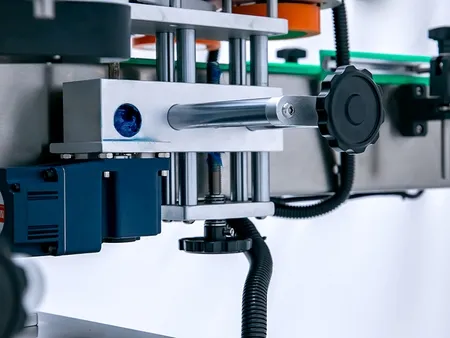

Imported Servo Motor: Features true closed-circuit control with high-precision subdivision and an integrated absolute encoder, designed for high-speed, high-accuracy, and stable labeling performance.
Enhanced Automation: Includes automatic detection, correction, and counting functions, significantly boosting production efficiency and labeling accuracy.

Standard Configurations

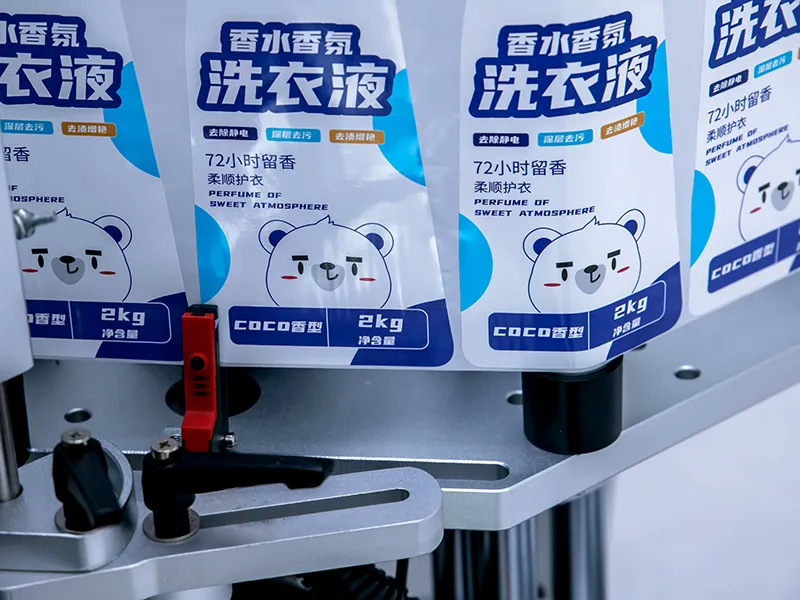

Automatic label unwinder: Used for automatic feeding of labels to ensure uninterrupted production and minimize label waste.

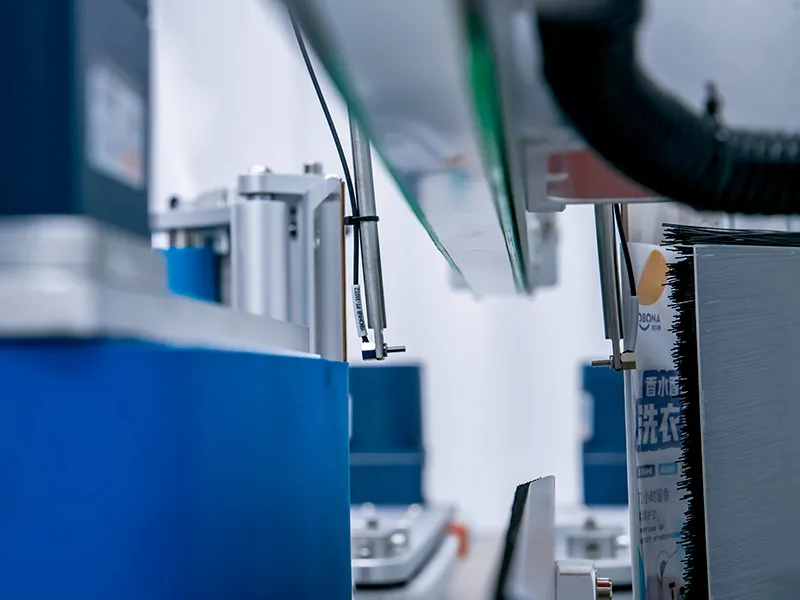

Precise positioning control: Uses photoelectric cells or other sensors to detect the positions of bottles and labels in real-time, ensuring accurate label application.
Pneumatic rollers: Securely press labels onto bottles or containers after application, preventing bubbles or wrinkles.
PLC control: Provides precise control through a programmable logic controller (PLC) with easy operation and adjustments via a touchscreen interface.
Label alignment device: Ensures labels stay properly aligned during application to maintain high labeling quality.
Reject system: Automatically removes defective products when errors or labeling issues are detected, ensuring a high production pass rate.

Optional Configurations

Top label applicator: ideal for products requiring labels on multiple positions or for labeling bottle caps.
Inline printing unit: integrates thermal transfer printers or inkjet markers to print production dates, batch numbers, barcodes, and more directly on labels
Rotating starwheel: ensures smooth and precise labeling by automatically rotating round or irregularly shaped bottles.
Index rotary table: adds a bottle separation device for complex bottle shapes or specific production line requirements, ensuring even distribution at the labeling station.
Automatic rejection system: automatically removes defective products if labeling errors or misaligned labels are detected.
Support for diverse bottle shapes: customizable conveyor systems, separation devices, and labeling heads to accommodate various bottle sizes and shapes.
Special label requirements: tailored solutions for special label types like clear, heat-shrinkable, or eco-friendly labels to ensure high-quality application.
High-efficiency customization: designed for high-speed production to meet specific production capacity demands.
Labeling automation and integration: smoothly integrates with other packaging equipment like cartoners, sealers, checkweighers, and palletizers to form a complete automated production line, reducing manual operations.
Compliance with industry standards: customizable to meet specific hygiene, quality, and safety standards for industries like pharmaceuticals, food, and cosmetics, with options like explosion-proof devices.
Custom materials for safety: for industries requiring high hygiene levels, such as food and pharmaceuticals, our equipment can be customized with stainless steel or food-grade materials.
Explosion-proof device: adds explosion-proof features for specialized industries.
Multi-dimensional adjustable screen: offers eight-dimensional adjustments for the operation screen, enhancing convenience during use.

Videos

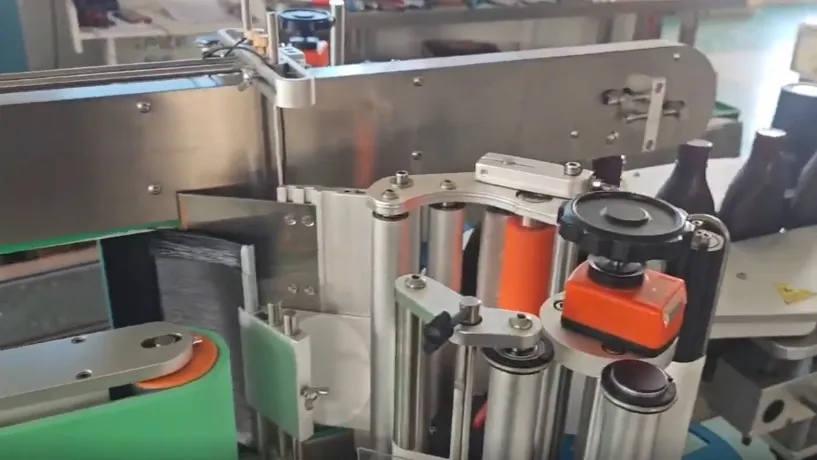

Front and Back Labeling Machine

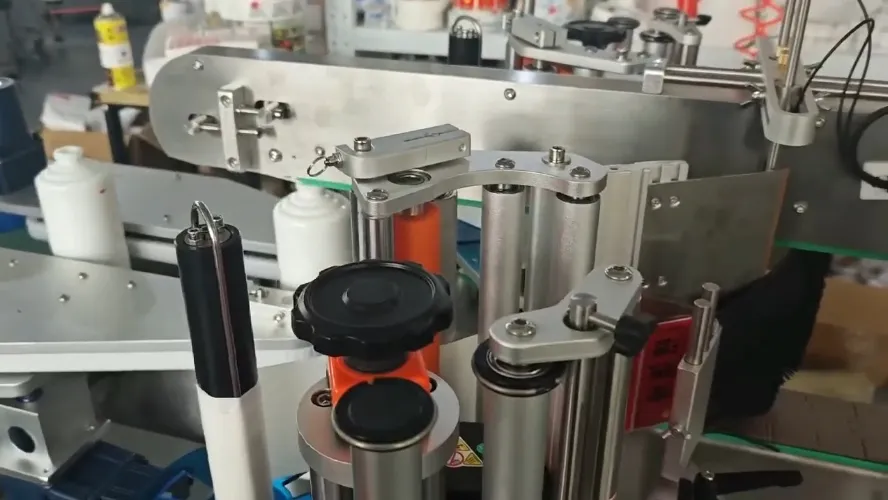

Front and Back Labeling Machine for Chocolate Sauce Bottle

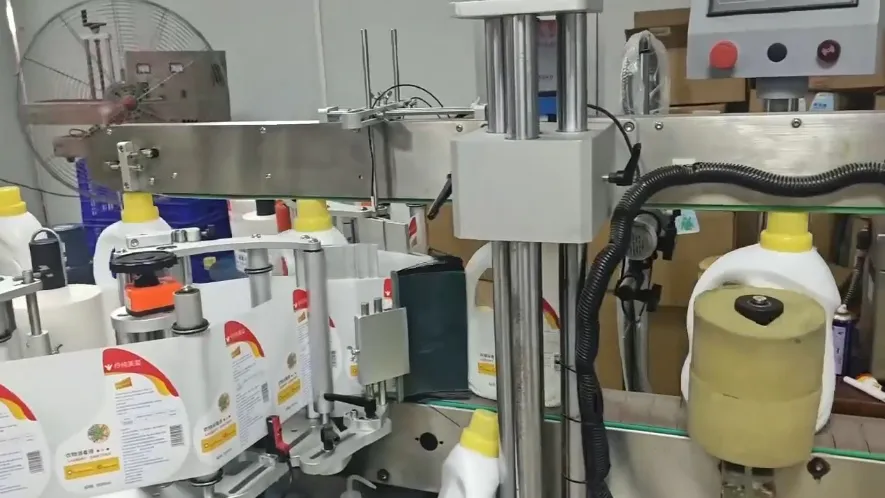

Front and Back Labeling Machine for Laundry Detergent Manufacturer
